What the Black Diamond Symbols on Measuring Tapes Really Mean

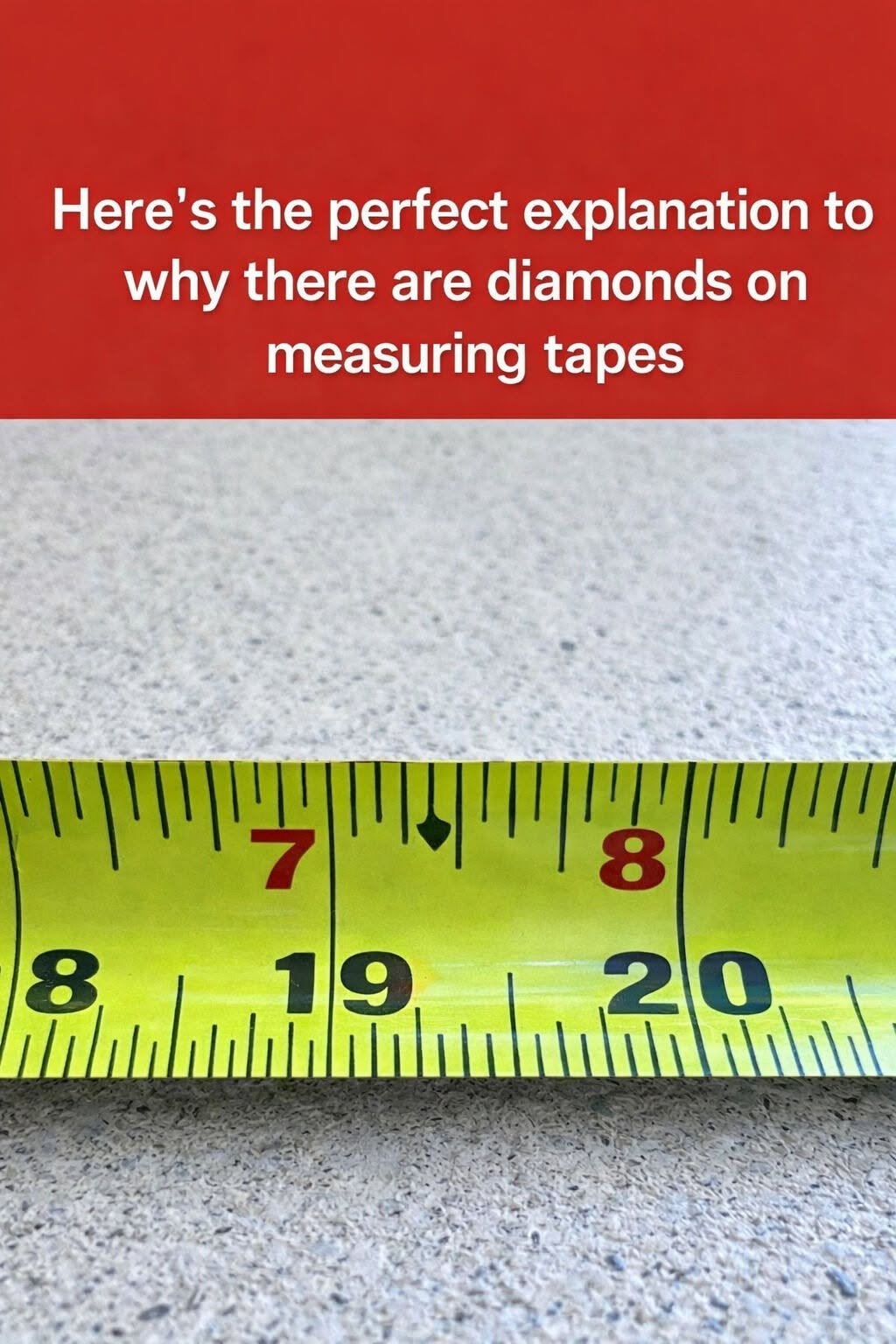

Many people use a measuring tape for simple tasks like measuring furniture or checking wall dimensions. But if you look closely, you may notice small black diamond symbols that appear at regular intervals along the tape. These marks are easy to overlook, yet they serve an important purpose in construction and carpentry. The black diamonds are known as truss marks or truss indicators. On most measuring tapes, they appear every 19.2 inches. Builders use these markings to quickly determine where to place floor trusses or joists when constructing a building frame.

Instead of calculating measurements repeatedly, workers can simply follow the diamond marks to ensure proper spacing. The 19.2-inch spacing comes from a common building guideline based on an eight-foot section, which equals 96 inches. When that length is divided into five equal parts, each section measures 19.2 inches. This allows builders to place five evenly spaced supports across an eight-foot span.

The method works well with standard construction materials like plywood or drywall, which are designed to fit common framing measurements. Using these black diamond marks provides several advantages. First, they reduce the need for constant calculations, helping builders work faster and more efficiently. Second, they help ensure consistent spacing, which improves the strength and balance of a structure.

Finally, the system can reduce material waste because construction components are placed more accurately. Measuring tapes also include other helpful markings. For example, red numbers or highlighted boxes often appear every 16 inches, showing standard wall stud spacing. Together, these markings turn a simple measuring tape into a practical guide that helps professionals build with greater speed, accuracy, and consistency.
